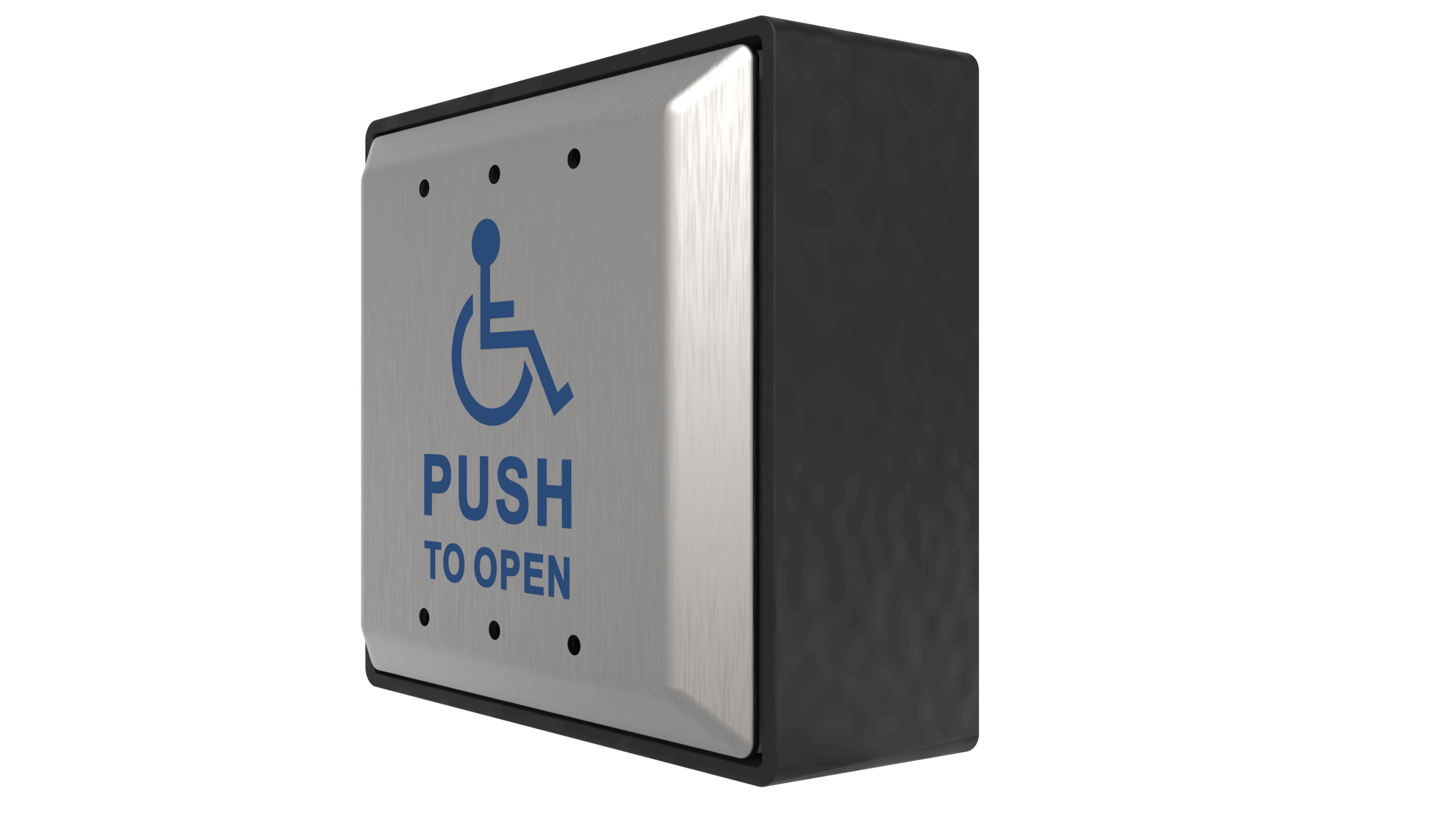

Push Switch (Double Gang)

  • Designed for standard double-gang electrical boxes, the unit comes preassembled for fast installation to in-wall or surface-mount boxes using tamper-resistant Allen screws and the included hex key.

    Its two-piece modular design allows the rear assembly to mount first, with the faceplate secured afterward—making field maintenance or replacement simple and efficient.



    DESCRIPTION

    Switch Type:                 Momentary

    Contact Type:               COMMON / N.O. /N.C.

    Current Rating:             15 A @ 250 VDC

    Mounting:                      Double Gang

    Dimensions:                  4-1/2" x 4-1/2" x 1-37/64" (114mm x 114mm x 40mm)

The PB55B-M all-active push switch is built for reliable performance in demanding commercial and institutional environments. Constructed with a brushed stainless steel faceplate, it combines durability with a professional appearance.
